R1 TYRE TECHNICAL SPECIFICATION

Tyre Size	Pattern	Rim Width (Inch)	Unloaded Inflated Dimension		Static Loaded Radius (mm)	Rolling Circumferance	Ply Rating	Type	Free Rolling Wheel -Load Capacity				Inflation Pressure (bar)
			± 2 %			± 2.5 %			90kmph with HLV		40 kmph with HLV
			Section Width (mm)	Overall Diameter (mm)		(mm)			A6 Load Index	Max Load (kgs)	A6 Load Index	Max Load (kgs)

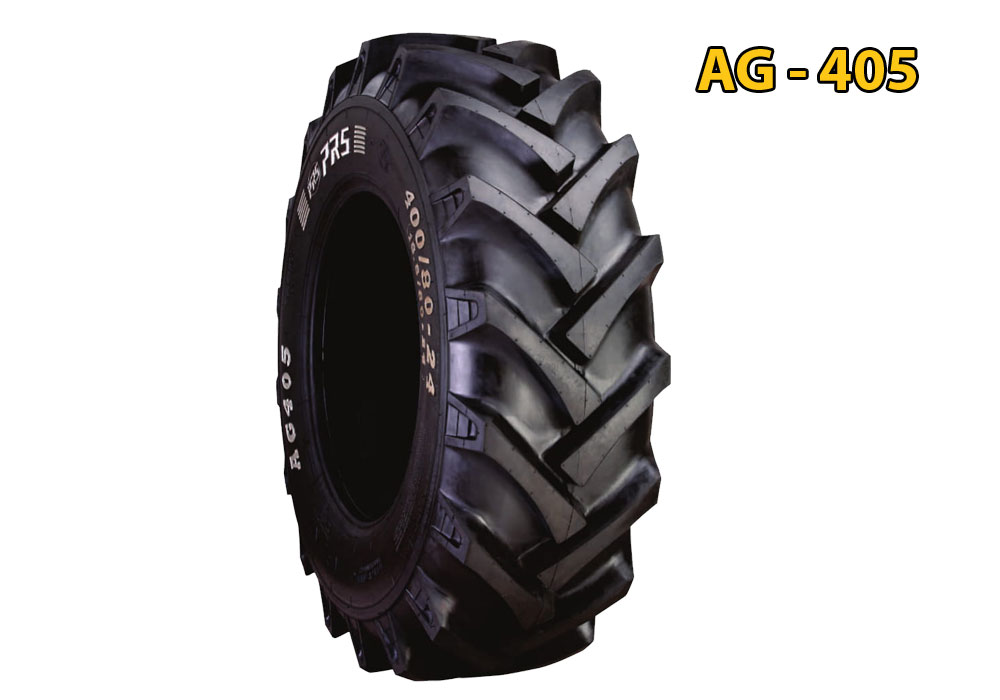

15.5/80-24	AG-405	13.0	400	1270	566	3655	12	TL	163	4875	157	4125	4.1
							14	TL	166	5300	160	4500	4.8
							16	TL	169	5800	163	4875	5.2
405/70-20 (16.0/70-20)	AG-405	13.0	410	1097	487	3214	10	TL	153	3650	147	3075	3.4
							12	TL	157	4125	151	3450	4.1
							14	TL	160	4500	154	3750	4.8
12.5/80-18	AG-405	9.0	308	987	438	2892	12	TL	148	3150	144	2800	4.70
							16	TL	154	3750	150	3350	6.80
