MPT TYRE TECHNICAL SPECIFICATION
| Tyre Size | Pattern | Rim Width ( inch ) |
Unloaded Inflated Dimesion |
Static Loaded Radius (mm) |
Rolling Circumfrerence |
Ply Rating |
TYPE | Load Capacity | ||
| ± 2 % | ± 2.5 % | 40 KM/H | ||||||||
| Section Width (mm) |
Overall Diameter (mm) |
(mm) | Max. Load (Kgs) |
Inflation Pressure (bar) |
||||||

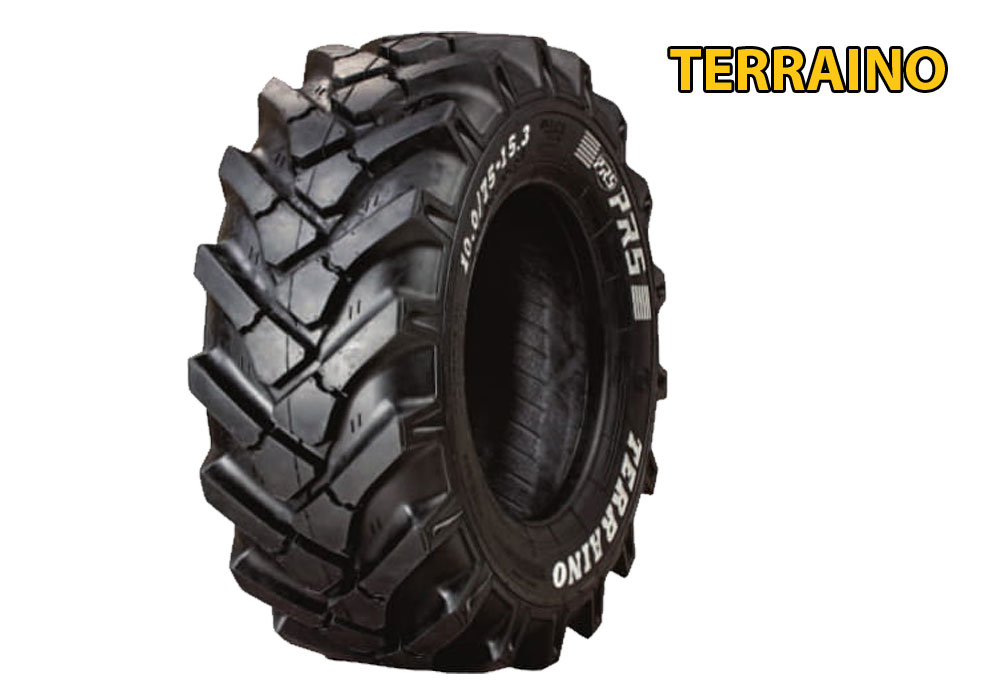

| 10.0/75-15.3 | TERRAINO | 9.00 | 260 | 774 | 355 | 2310 | 10 | TT/TL | 1500 | 3.9 |
| 12 | TL | 1700 | 4.7 | |||||||
| 14 | TL | 1900 | 5.5 | |||||||
| 18 | TL | 2200 | 7.1 | |||||||
| 11.5/80-15.3 | TERRAINO | 9.00 | 298 | 868 | 393 | 2578 | 10 | TT/TL | 1900 | 3.4 |
| 14 | TT/TL | 2430 | 4.75 | |||||||
| 18 | TL | 2800 | 6 | |||||||
| 12.0/75-18 | TERRAINO | 9.00 | 300 | 938 | 447 | 2755 | 12 | TT/TL | 2430 | 4.0 |
