INDUSTRIAL - R4 TYRE TECHNICAL SPECIFICATION
| SIZE | PATTERN | RIM Width (inch) | UNLOADED INFLATED DIMENSIONS | Static Loaded Radius (mm) | ± 2.5% | PLY Rating |
TYPE | INFLATION PRESSURE ( bar ) |
Load Capacity | ||||
| Rolling Circumferance | |||||||||||||
| ± 2 % | 30 KM/H | 40 KM/H | |||||||||||
| SECTION WIDTH (mm) | OVERALL DIAMETER (mm) | A6 Load Index | Max.Load (Kgs) | A8 Load Index |
Max.load (Kgs) | ||||||||

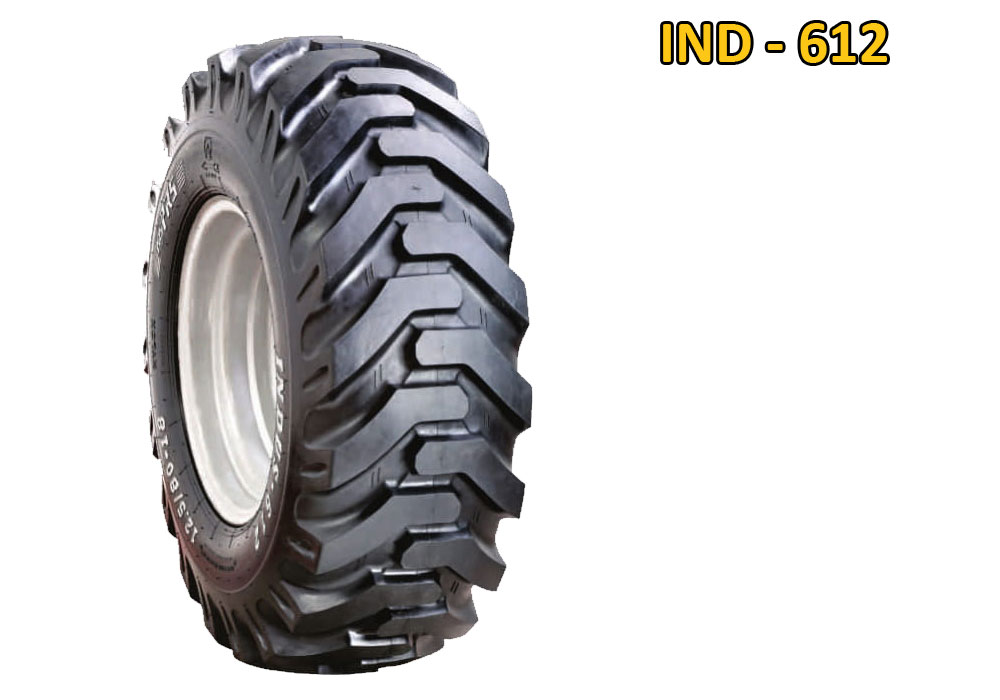

| 12.5/80-18 | IND-612 | 9.00 | 310 | 992 | 438 | 2892 | 12 | TT/TL | 5.0 | 148 | 3150 | 142 | 2650 |
| 14 | TT/TL | 5.9 | 152 | 3550 | 146 | 3000 | |||||||
| 16 | TT/TL | 6.7 | 154 | 3750 | 150 | 3350 | |||||||
| 405/70 - 20 (16/70-20) | Durabler | 13 | 410 | 1094 | 495 | 3165 | 12 | TL | 4.1 | 148 | 3150 | 142 | 2650 |
| 14 | TL | 4.8 | 152 | 3550 | 146 | 3000 | |||||||
| 16 | TL | 4 | 154 | 3750 | 150 | 3350 | |||||||
TT-Tube Type, TL-Tubeless

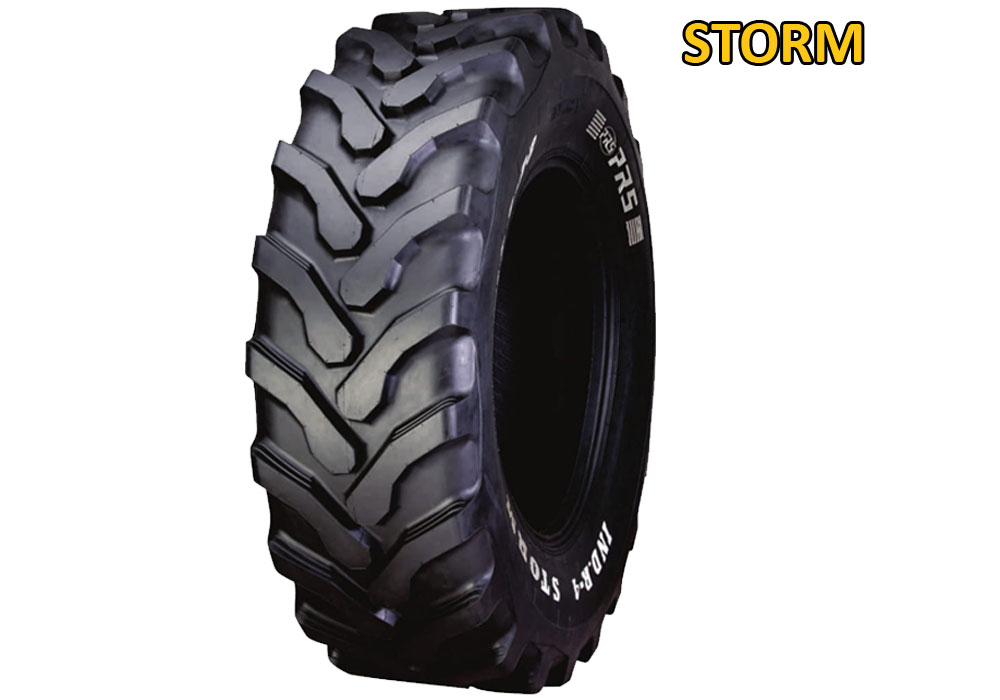

INDUSTRIAL - STORM TYRE TECHNICAL SPECIFICATION
| TYRE SIZE |
PR | Tread Pattern |
RIM Size | Unloaded Inflated Dimensions | Inflation Pressure | Load Capacity | |||
| Overall Diameter |
Section Width |
90 kmph with HLV | 40 km/h . 25mph | ||||||
| Bar | PSI | Kg | Ibs | ||||||
| 16.9-28 | 12 | STORM | W15L x 28 | 1420 | 420 | 2.60 | 37 | 3550 | 7850 |
| 18.4 - 26 | 12 | STORM | W15L x 26 | 1430 | 490 | 2.50 | 36 | 4000 | 8818 |
| 17.5L-24* | 10 | STORM | W15L x 24 | 1250 | 450 | 2.20 | 31 | 2800 | 6200 |
| 19.5L-24* | 12 | STORM | DW16A x 24 | 1340 | 500 | 2.30 | 33 | 3450 | 7600 |

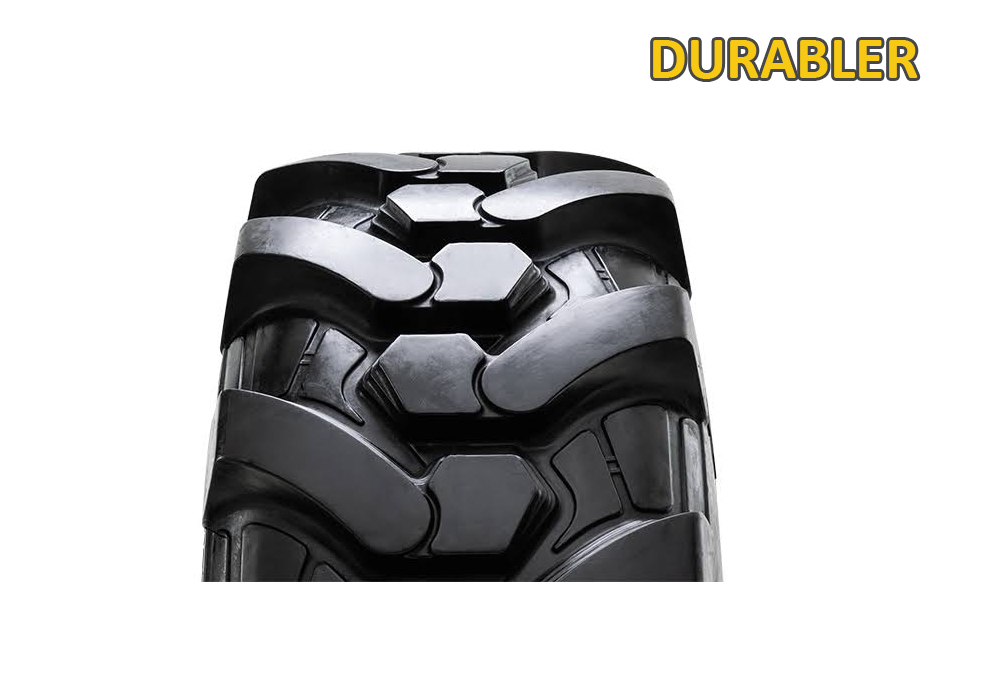

INDUSTRIAL - DURABLER TYRE TECHNICAL SPECIFICATION
| Tyre Size | PR | Tread Pattern | Rim Size | Unloaded inflated Dimensions | Inflation Pressure | Load Capacity | |||
| Overall Diameter | Section Width | 90 kmph with HLV | 40 km/h .25 mph | ||||||
| Bar | PSI | Kg | Ibs | ||||||
| 400/70-20 (16/70-20 & 405/70-20) | 14 | DURABLER | 13 | 1090 | 405 | 3.50 | 50.75 | 3335 | 7350 |
| 16 | 4.00 | 58.00 | 3620 | 7980 | |||||
