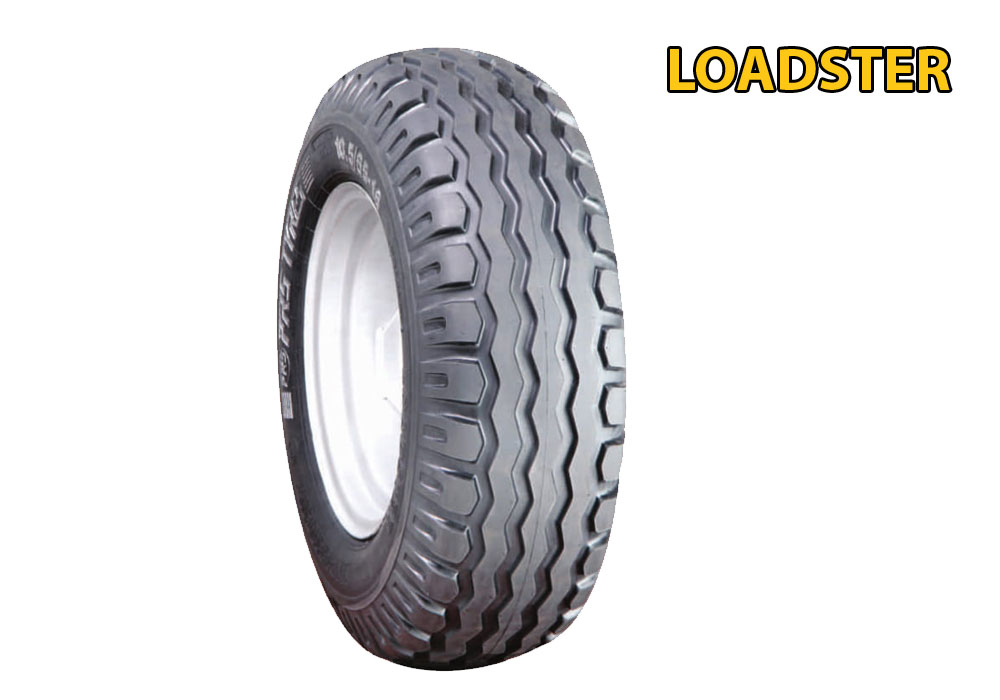

LOADSTER TYRE TECHNICAL SPECIFICATION

SIZE	PATTERN	RIM With ( inch )	Unloaded Inflated Dimension		Static Loaded Radius (mm)	± 2.5 %	Ply Rating	TYPE	Inflation Pressure (bar)	LOAD CAPACITY
			± 2 %							30 KM/H		40 KM/H
			Section Width(mm)	Overall Diameter (mm)		Rolling Circumferance				A6 Load Index	Max. Load Index	A8 Load Index	MAX. Load (Kgs)
10.0/80-12	Loadster	9.00	267	702	313	2080	8	TL	5.4	126	1700	121	1540
		9.00	267	702	313	2080	10	TL	5.4	126	1700	121	1450
10.5/65-16	Loadster	9.00	267	762	343	2112	10	TL	5.2	129	1850	123	1550
		9.00	267	762	343	2112	14	TL	7.1	137	2300	130	1900
10.0/75-15.3	Loadster	9.00	272	758	343	2227	12	TL	6.4	132	2000	126	1700
		9.00	272	758	343	2227	14	TL	7.1	136	2240	130	1900
		9.00	272	758	343	2227	10	TL	5.2	128	1800	123	1550
		9.00	272	758	343	2227	14	TL	7.1	136	2240	130	1900
11.5/80-15.3	Loadster	9.00	296	846	370	2473	12	TL	5.6	141	2575	135	2180
		9.00	296	846	370	2473	14	TL	6.5	145	2900	139	2430
		9.00	296	846	370	2473	12	TL	5.6	141	2575	135	2180
		9.00	296	846	370	2473	14	TL	6.5	145	2900	139	2430
12.5/80-15.3	Loadster	9.00	314	887	387	2573	14	TL	5.8	147	3075	142	2650
		9.00	314	887	387	2573	16	TL	6.5	150	3350	144	2800
		9.00	314	887	387	2573	16	TL	5.8	147	3075	142	2650
13.0/65-18	Loadster	11.00	339	892	398	2608	12	TL	4.9	144	2800	138	2360
		11.00	339	892	398	2608	14	TL	5.8	147	3075	141	2575
		11.00	339	892	398	2608	16	TL	6.7	150	3350	144	2800

TYRE TECHNICAL SPECIFICATION

SIZE	PATTERN	RIM With (inch)	Unloaded Inflated Dimension		Static Loaded Radius (mm)	± 2.5 %	Ply Rating	TYPE	Inflation Pressure (bar)	LOAD CAPACITY
			± 2 %							30 KM/H		40 KM/H
			Section Width (mm)	Overall Diameter (mm)		Rolling Circumferance				A6 Load Index	Max. Load (Kgs)	A8 Load Index	Max. Load (Kgs)

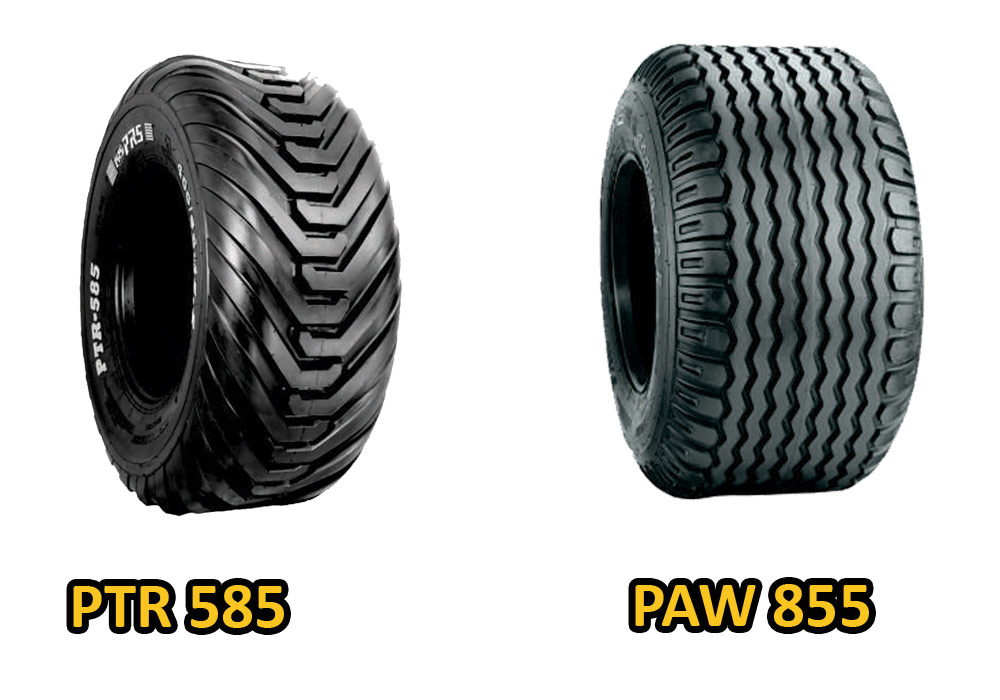

400/60-15.5	PAW 855	13.00	408	878	380	2564	10	TL	3.6	143	2725	136	2240
		13.00	408	878	380	2564	14	TL	4.9	149	3250	143	2725
400/60-15.5 Traction	PAW 585	13.00	409	880	380	2564	14	TL	4.9	149	3250	143	2725
		13.00	409	880	380	2564	16	TL	5.2	153	3650	149	3250

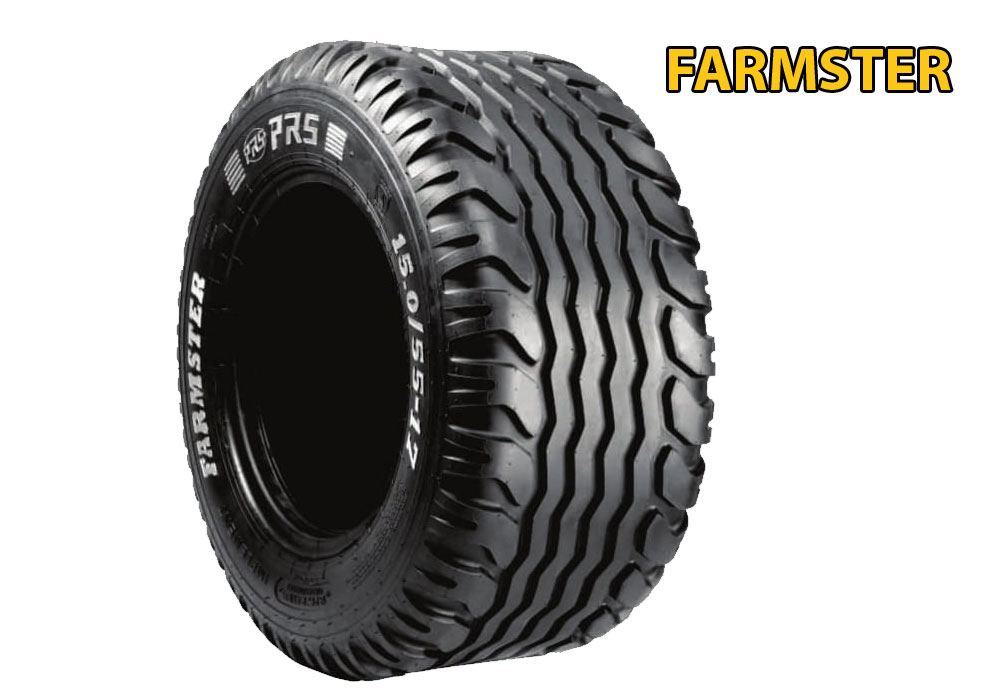

FARMSTER TYRE TECHNICAL SPECIFICATION

Tyre Size	PR	Pattern	Type	Rim Width (Inch)	Unloaded Inflated Dimension		For Free Rolling Wheel
							Loading Capacity
					± 2 %		30 km/h-LLV		40km/h-LLV		30km/h-HLV		40km/h-HLV
					OD (mm)	CSW (mm)	Load (kg)	IP (bar)	Load (kg)	IP (bar)	Load (kg)	IP (bar)	Load (kg)	IP (bar)
15.0/55-17	10	FARMSTER	TL	13.00	840	400	2120	2.60	1925	2.60	2540	3.40	2290	3.40
	14						2575	3.70	2340	3.70	3090	4.80	2780	4.80
	18						3030	4.90	2725	4.90	3635	5.90	3270	5.90
